Semi-auto chemistry analyzer เครื่องวิเคราะห์ทางเคมีแบบกึ่งอัตโนมัติ รุ่น ES-101C

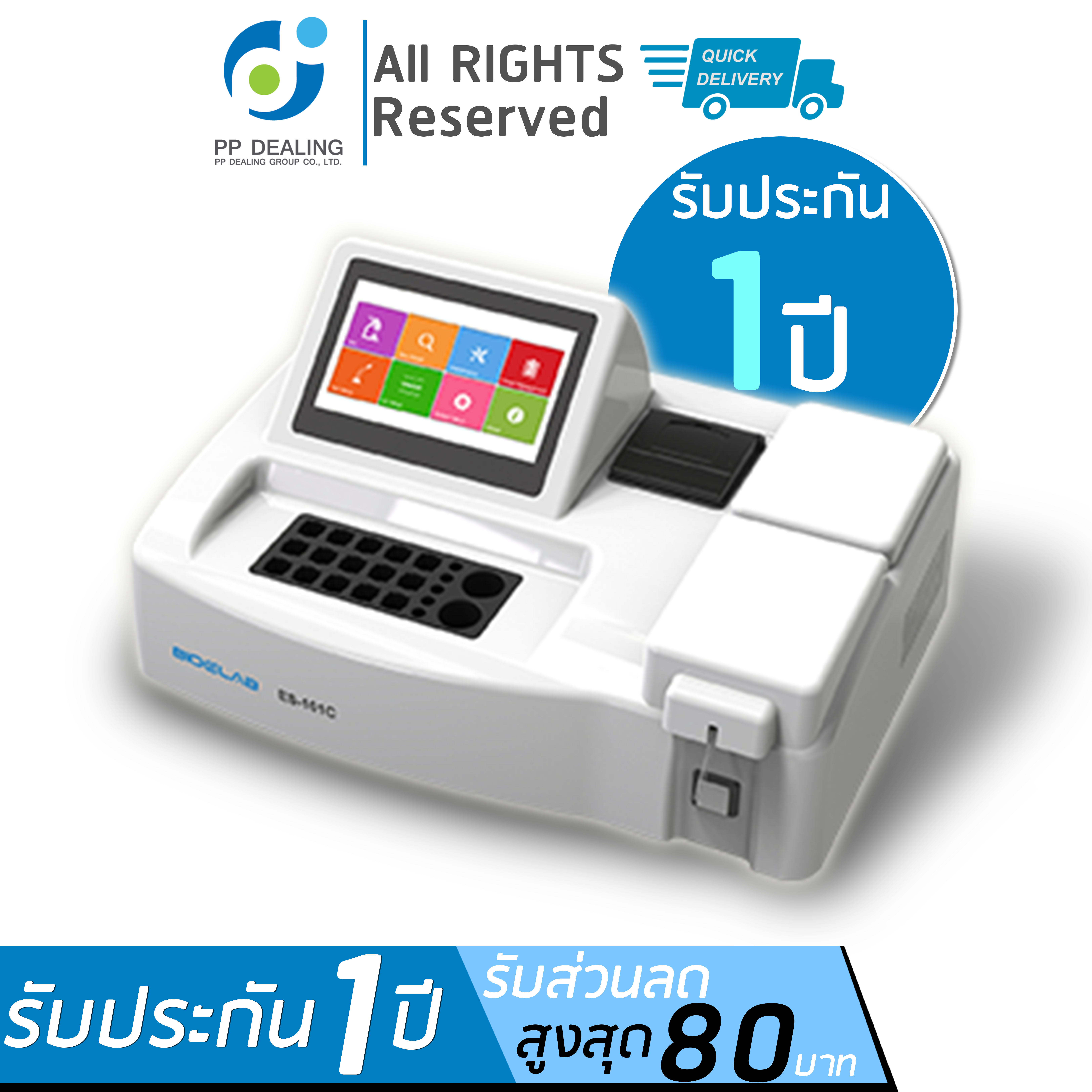

ES-101C Semi-Auto Chemistry Analyzer

Technical specifications

Test method

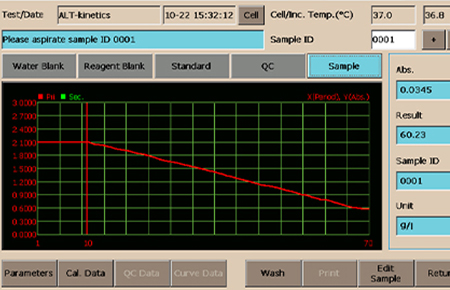

1 point end, 2 point end(Sample blank), Kinetics, Fixed-time, Coagulation(optional).

Optics

7 standard filters : 340nm, 405nm, 450nm, 505nm, 546nm, 578nm, 630nm. 2 more for optional.

Lamp house

Long-life tungsten halogen lamp(6V/10W), auto-sleep function.

Display

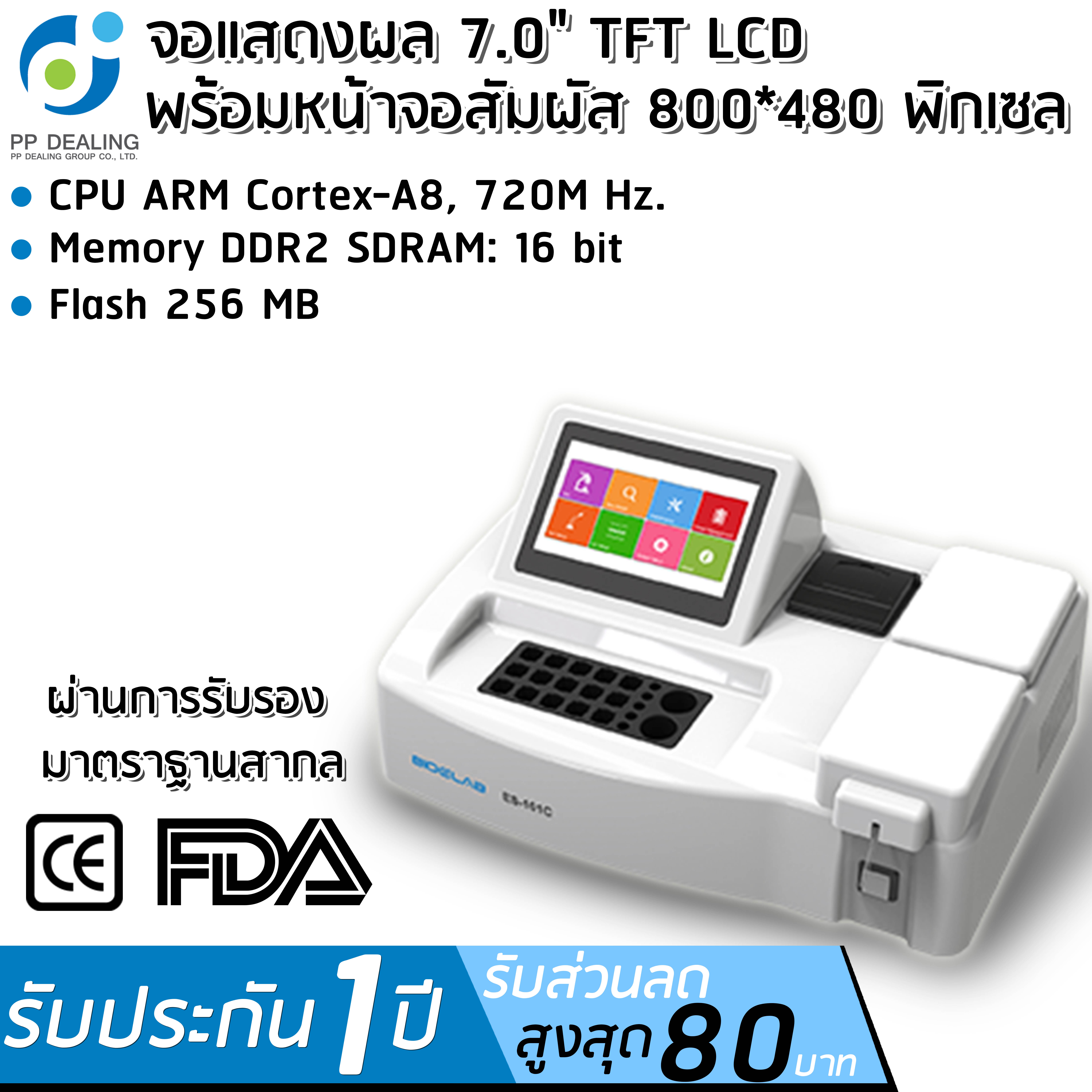

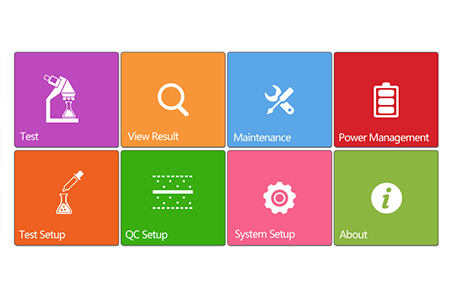

7.0" TFT LCD with touch screen, 800*480 pixels.

Printer

Build-in thermal printer, 57mm printer paper.

Temperature

25, 30, 37C and Room temperature. By means of Peltier elements.

Flow cell capacity & optical path

32ul, 10mm.

Resolution

0.0001 Abs.

Photometric range

0.0000-4.0000 Abs.

CPU

ARM Cortex-A8, 720M Hz.

Memory

DDR2 SDRAM : 16 bit;

Flash

256 MB;

Over 300 programs, 200000 results can be stored.

Interface

4 USB Hosts, 1 USB Slave, 1 Ethernet port.

USB port(host) for keyboard, mouse, printer, U disk, bar code reader etc.

USB port(slave) for PC connection(support PC software control function).

Operational environment

Temperature : 100-30C, Humidity : 30%-80%.

Power requirement

Wide power supply AC 100-240V, 50/60 Hz.

Dimension

400*300* 160mm(L*W*H).
